15.3.4 Fuzzy Methods

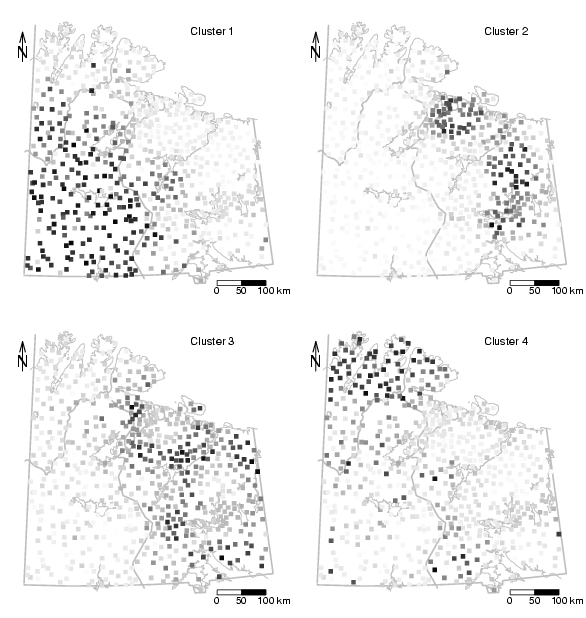

# Fig. 15.6.: Fuzzy clustering library(StatDA) data(moss) data(kola.background) el=c("Cu","Ni","Mg","Sr") x=scale(log10(moss[,el])) set.seed(100) res=cmeans(x,4) X=moss[,"XCOO"] Y=moss[,"YCOO"] # true representation of x and y axis of map for plot xwid=diff(range(X))/12e4 ywid=diff(range(Y))/12e4 pdf("fig-15-6.pdf",width=2*xwid,height=2*ywid) par(mfrow=c(2,2),mar=c(1.5,1.5,1.5,1.5)) # NEW MAP plot(X,Y,frame.plot=FALSE,xaxt="n",yaxt="n",xlab="",ylab="",type="n") plotbg(map.col=c("gray","gray","gray","gray"),add.plot=T) points(moss[,"XCOO"],moss[,"YCOO"],col=gray(1-res$mem[,1]),pch=15,cex=1) # Legend text(752000,7880000,"Cluster 1",cex=1.1) # scalebar scalebar(761309,7373050,861309,7363050,shifttext=-0.5,shiftkm=37e3,sizetext=0.8) # North arrow Northarrow(362602,7818750,362602,7878750,362602,7838750,Alength=0.15,Aangle=15,Alwd=1.3,Tcex=1.6) # NEW MAP plot(X,Y,frame.plot=FALSE,xaxt="n",yaxt="n",xlab="",ylab="",type="n") plotbg(map.col=c("gray","gray","gray","gray"),add.plot=T) points(moss[,"XCOO"],moss[,"YCOO"],col=gray(1-res$mem[,2]),pch=15,cex=1) # Legend text(752000,7880000,"Cluster 2",cex=1.1) # scalebar scalebar(761309,7373050,861309,7363050,shifttext=-0.5,shiftkm=37e3,sizetext=0.8) # North arrow Northarrow(362602,7818750,362602,7878750,362602,7838750,Alength=0.15,Aangle=15,Alwd=1.3,Tcex=1.6) # NEW MAP plot(X,Y,frame.plot=FALSE,xaxt="n",yaxt="n",xlab="",ylab="",type="n") plotbg(map.col=c("gray","gray","gray","gray"),add.plot=T) points(moss[,"XCOO"],moss[,"YCOO"],col=gray(1-res$mem[,3]),pch=15,cex=1) # Legend text(752000,7880000,"Cluster 3",cex=1.1) # scalebar scalebar(761309,7373050,861309,7363050,shifttext=-0.5,shiftkm=37e3,sizetext=0.8) # North arrow Northarrow(362602,7818750,362602,7878750,362602,7838750,Alength=0.15,Aangle=15,Alwd=1.3,Tcex=1.6) # NEW MAP plot(X,Y,frame.plot=FALSE,xaxt="n",yaxt="n",xlab="",ylab="",type="n") plotbg(map.col=c("gray","gray","gray","gray"),add.plot=T) points(moss[,"XCOO"],moss[,"YCOO"],col=gray(1-res$mem[,4]),pch=15,cex=1) # Legend text(752000,7880000,"Cluster 4",cex=1.1) # scalebar scalebar(761309,7373050,861309,7363050,shifttext=-0.5,shiftkm=37e3,sizetext=0.8) # North arrow Northarrow(362602,7818750,362602,7878750,362602,7838750,Alength=0.15,Aangle=15,Alwd=1.3,Tcex=1.6) dev.off()
