13.1 Univariate Versus Multivariate Outlier Detection

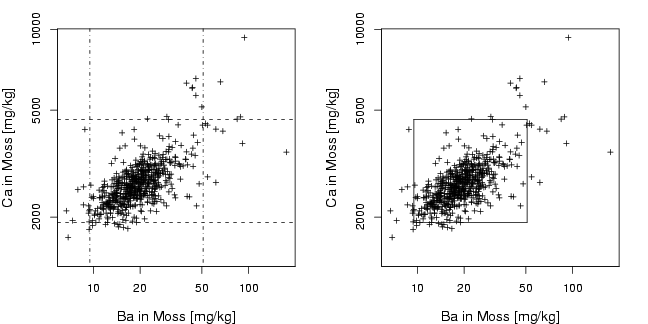

# Fig. 13.1.: Univariate outlier detection for Ba, Ca in Moss library(StatDA) data(moss) Ba=log10(moss[,"Ba"]) Ca=log10(moss[,"Ca"]) pdf("fig-13-1.pdf",width=9,height=4.5) par(mfcol=c(1,2),mar=c(4,4,2,2)) plot(Ba,Ca,xlab="Ba in Moss [mg/kg]",ylab="Ca in Moss [mg/kg]", cex.lab=1.2, cex=0.7, pch=3, xaxt="n", yaxt="n", ylim=c(3.15,max(Ca))) axis(1,at=log10(alog<-sort(c((10^(-50:50))%*%t(c(2,5,10))))),labels=alog) axis(2,at=log10(alog<-sort(c((10^(-50:50))%*%t(c(2,5,10))))),labels=alog) abline(v=quantile(Ba,c(0.02,0.98)),lty=4) abline(h=quantile(Ca,c(0.02,0.98)),lty=2) plot(Ba,Ca,xlab="Ba in Moss [mg/kg]",ylab="Ca in Moss [mg/kg]", cex.lab=1.2, cex=0.7, pch=3, xaxt="n", yaxt="n", ylim=c(3.15,max(Ca))) axis(1,at=log10(alog<-sort(c((10^(-50:50))%*%t(c(2,5,10))))),labels=alog) axis(2,at=log10(alog<-sort(c((10^(-50:50))%*%t(c(2,5,10))))),labels=alog) segments(quantile(Ba,0.02),quantile(Ca,0.02),quantile(Ba,0.98),quantile(Ca,0.02)) segments(quantile(Ba,0.98),quantile(Ca,0.02),quantile(Ba,0.98),quantile(Ca,0.98)) segments(quantile(Ba,0.02),quantile(Ca,0.98),quantile(Ba,0.98),quantile(Ca,0.98)) segments(quantile(Ba,0.02),quantile(Ca,0.02),quantile(Ba,0.02),quantile(Ca,0.98)) dev.off()

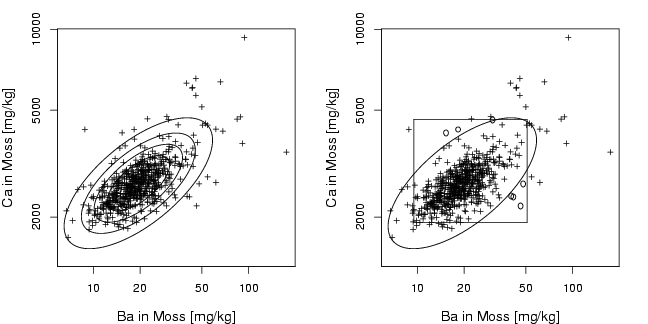

# Fig. 13.2.: Multivariate outlier detection for Ba, Ca in Moss library(StatDA) data(moss) Ba=log10(moss[,"Ba"]) Ca=log10(moss[,"Ca"]) pdf("fig-13-2.pdf",width=9,height=4.5) par(mfcol=c(1,2),mar=c(4,4,2,2)) plot(Ba,Ca,xlab="Ba in Moss [mg/kg]",ylab="Ca in Moss [mg/kg]", cex.lab=1.2, cex=0.7, pch=3, xaxt="n", yaxt="n", ylim=c(3.15,max(Ca))) axis(1,at=log10(alog<-sort(c((10^(-50:50))%*%t(c(2,5,10))))),labels=alog) axis(2,at=log10(alog<-sort(c((10^(-50:50))%*%t(c(2,5,10))))),labels=alog) x=cbind(Ba,Ca) plotellipse(apply(x,2,mean),cov(x),perc=c(0.5,0.75,0.9,0.98)) plot(Ba,Ca,xlab="Ba in Moss [mg/kg]",ylab="Ca in Moss [mg/kg]", cex.lab=1.2, cex=0.7, pch=3, xaxt="n", yaxt="n",type="n", ylim=c(3.15,max(Ca))) axis(1,at=log10(alog<-sort(c((10^(-50:50))%*%t(c(2,5,10))))),labels=alog) axis(2,at=log10(alog<-sort(c((10^(-50:50))%*%t(c(2,5,10))))),labels=alog) x=cbind(Ba,Ca) plotellipse(apply(x,2,mean),cov(x),perc=c(0.98)) segments(quantile(Ba,0.02),quantile(Ca,0.02),quantile(Ba,0.98),quantile(Ca,0.02)) segments(quantile(Ba,0.98),quantile(Ca,0.02),quantile(Ba,0.98),quantile(Ca,0.98)) segments(quantile(Ba,0.02),quantile(Ca,0.98),quantile(Ba,0.98),quantile(Ca,0.98)) segments(quantile(Ba,0.02),quantile(Ca,0.02),quantile(Ba,0.02),quantile(Ca,0.98)) # which data points outside ellipse but inside rectangular? out.el=(mahalanobis(x,apply(x,2,mean),cov(x)) > qchisq(0.98,2)) in.rec=(Ba>quantile(Ba,0.02) & Ba Ca>quantile(Ca,0.02) & Ca out.in=(out.el & in.rec) points(Ba[out.in],Ca[out.in],cex=0.9, pch=1) points(Ba[!out.in],Ca[!out.in],cex=0.7, pch=3) dev.off()
