6.4 Spatial Trends

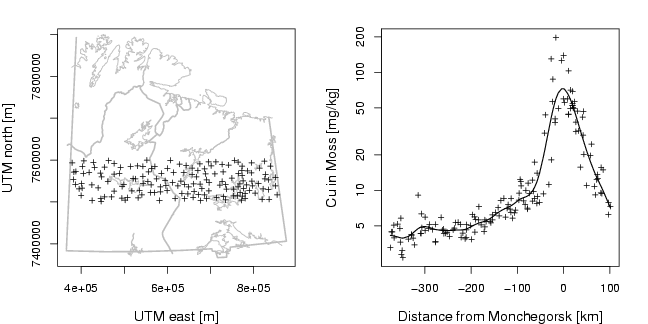

	# Fig. 6.6.: xy-plot with spatial trend library(StatDA) data(moss) data(kola.background) pdf("fig-6-6.pdf",width=9,height=4.5) par(mfrow=c(1,2),mar=c(4,4,2,2)) plotbg(map.col=c("gray","gray","gray","gray"), xlab="UTM east [m]", ylab="UTM north [m]", cex.lab=1.2) X=moss[,"XCOO"] Y=moss[,"YCOO"] points(X[Y<7600000 & Y>7500000],Y[Y<7600000 & Y>7500000],pch=3,cex=0.7) x=(X[Y<7600000 & Y>7500000]-753970)/1000 y=log10(moss[Y<7600000 & Y>7500000,"Cu"]) plot(x,y,xlab="Distance from Monchegorsk [km]",ylab="Cu in Moss [mg/kg]", yaxt="n", pch=3,cex=0.7, cex.lab=1.2) axis(2,at=log10(a<-sort(c((10^(-50:50))%*%t(c(2,5,10))))),labels=a) lines(smooth.spline(x,y),col=1,lwd=1.3) dev.off()

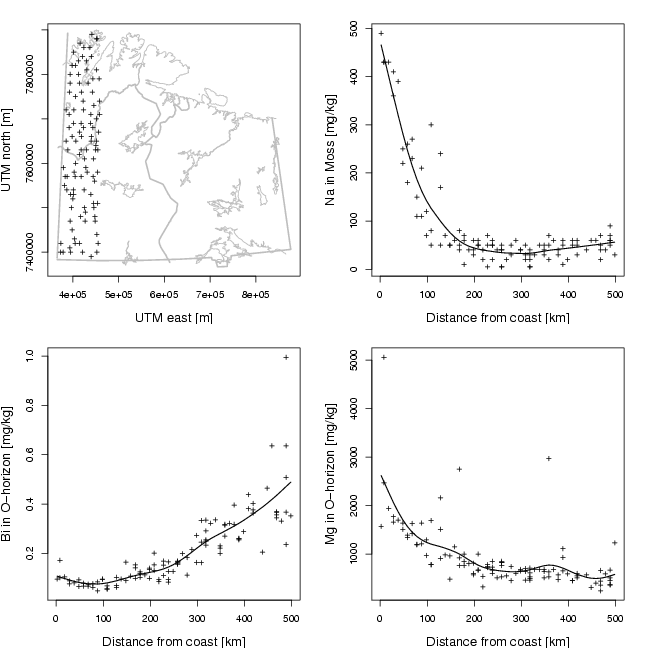

	# Fig. 6.7.: xy-plot with spatial trend (coast) library(StatDA) data(moss) data(ohorizon) data(kola.background) pdf("fig-6-7.pdf",width=9,height=9) par(mfrow=c(2,2),mar=c(4,4,2,2)) plotbg(map.col=c("gray","gray","gray","gray"), xlab="UTM east [m]", ylab="UTM north [m]", cex.lab=1.3) X=ohorizon[,"XCOO"] Y=ohorizon[,"YCOO"] points(X[X<460000],Y[X<460000],pch=3,cex=0.7) x=abs((Y[X<460000]-max(Y)+2000)/1000) y=ohorizon[X<460000,"Na"] plot(x,y,xlab="Distance from coast [km]",ylab="Na in Moss [mg/kg]",pch=3,cex=0.7,cex.lab=1.3) lines(smooth.spline(x,y),col=1,lwd=1.3) y=ohorizon[X<460000,"Bi"] plot(x,y,xlab="Distance from coast [km]",ylab="Bi in O-horizon [mg/kg]",pch=3,cex=0.7,cex.lab=1.3) lines(smooth.spline(x,y,spar=0.7),col=1,lwd=1.3) y=ohorizon[X<460000,"Mg"] plot(x,y,xlab="Distance from coast [km]",ylab="Mg in O-horizon [mg/kg]",pch=3,cex=0.7,cex.lab=1.3) lines(smooth.spline(x,y),col=1,lwd=1.3) dev.off()

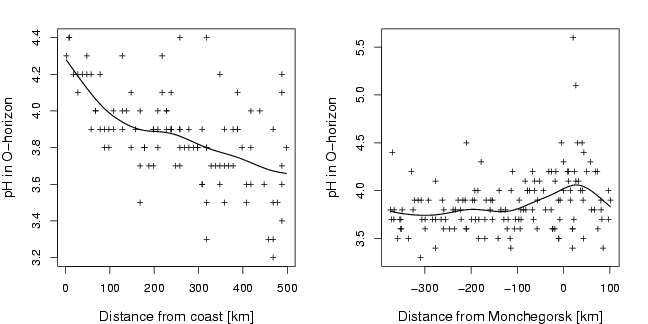

	# fig. 6.8.: xy-plot with spatial trend (pH) library(StatDA) data(ohorizon) pdf("fig-6-8.pdf",width=9,height=4.5) par(mfrow=c(1,2),mar=c(4,4,2,2)) X=ohorizon[,"XCOO"] Y=ohorizon[,"YCOO"] x1=(X[Y<7600000 & Y>7500000]-753970)/1000 y1=ohorizon[Y<7600000 & Y>7500000,"pH"] x2=abs((Y[X<460000]-max(Y)+2000)/1000) y2=ohorizon[X<460000,"pH"] y2<-y2[-65] x2<-x2[-65] plot(x2,y2,xlab="Distance from coast [km]",ylab="pH in O-horizon",pch=3,cex=0.7,cex.lab=1.2) lines(smooth.spline(x2,y2,spar=0.8),col=1,lwd=1.3) plot(x1,y1,xlab="Distance from Monchegorsk [km]",ylab="pH in O-horizon",pch=3,cex=0.7,cex.lab=1.2) lines(smooth.spline(x1,y1),col=1,lwd=1.3) dev.off()
