5.9.4 Incorrect Scaling of Symbol Size

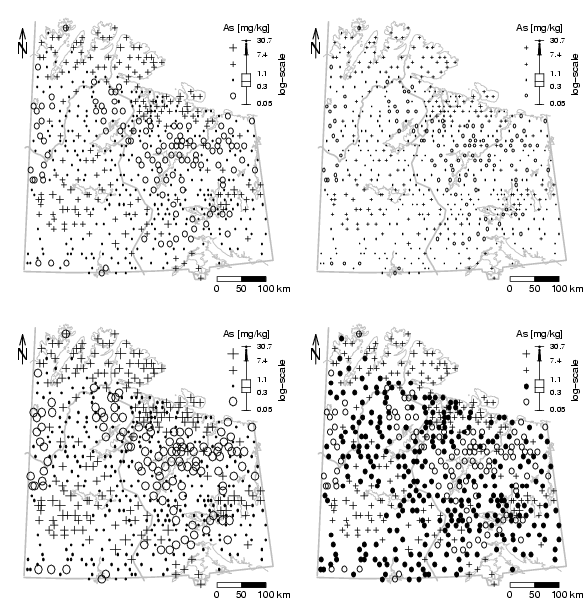

# Fig. 5.14.: Map with wrong symbol size library(StatDA) data(chorizon) data(kola.background) el=chorizon[,"As"] X=chorizon[,"XCOO"] Y=chorizon[,"YCOO"] # true representation of x and y axis of map for plot xwid=diff(range(X))/12e4 ywid=diff(range(Y))/12e4 pdf("fig-5-14.pdf",width=2*xwid,height=2*ywid) par(mfrow=c(2,2),mar=c(1.5,1.5,1.5,1.5)) ### NEW MAP: EDA 5 symbols # generate plot with background plot(X,Y,frame.plot=FALSE,xaxt="n",yaxt="n",xlab="",ylab="",type="n") plotbg(map.col=c("gray","gray","gray","gray"),add.plot=T) SymbLegend(X,Y,el,type="boxplot",qutiles<-c(0,0.05,0.25,0.75,0.95,1),symbtype="EDA",symbmagn=0.8, leg.position="topright",leg.title="As [mg/kg]",leg.title.cex=1.0,leg.round=2,leg.wid=4, leg.just="right",cex.scale=0.85,xf=9e3,logscale=TRUE,accentuate=FALSE) # scalebar scalebar(761309,7373050,861309,7363050,shifttext=-0.5,shiftkm=37e3,sizetext=0.8) # North arrow Northarrow(362602,7818750,362602,7878750,362602,7838750,Alength=0.15,Aangle=15,Alwd=1.3,Tcex=1.6) ### NEW MAP: EDA 5 symbols, too small # generate plot with background plot(X,Y,frame.plot=FALSE,xaxt="n",yaxt="n",xlab="",ylab="",type="n") plotbg(map.col=c("gray","gray","gray","gray"),add.plot=T) SymbLegend(X,Y,el,type="boxplot",qutiles<-c(0,0.05,0.25,0.75,0.95,1),symbtype="EDA",symbmagn=0.4, leg.position="topright",leg.title="As [mg/kg]",leg.title.cex=1.0,leg.round=2,leg.wid=4, leg.just="right",cex.scale=0.85,xf=9e3,logscale=TRUE,accentuate=FALSE) # scalebar scalebar(761309,7373050,861309,7363050,shifttext=-0.5,shiftkm=37e3,sizetext=0.8) # North arrow Northarrow(362602,7818750,362602,7878750,362602,7838750,Alength=0.15,Aangle=15,Alwd=1.3,Tcex=1.6) ### NEW MAP: EDA 5 symbols, too large # generate plot with background plot(X,Y,frame.plot=FALSE,xaxt="n",yaxt="n",xlab="",ylab="",type="n") plotbg(map.col=c("gray","gray","gray","gray"),add.plot=T) SymbLegend(X,Y,el,type="boxplot",qutiles<-c(0,0.05,0.25,0.75,0.95,1),symbtype="EDA",symbmagn=1.2, leg.position="topright",leg.title="As [mg/kg]",leg.title.cex=1.0,leg.round=2,leg.wid=4, leg.just="right",cex.scale=0.85,xf=9e3,logscale=TRUE,accentuate=FALSE) # scalebar scalebar(761309,7373050,861309,7363050,shifttext=-0.5,shiftkm=37e3,sizetext=0.8) # North arrow Northarrow(362602,7818750,362602,7878750,362602,7838750,Alength=0.15,Aangle=15,Alwd=1.3,Tcex=1.6) ### NEW MAP: EDA 5 symbols, dot too large # generate plot with background plot(X,Y,frame.plot=FALSE,xaxt="n",yaxt="n",xlab="",ylab="",type="n") plotbg(map.col=c("gray","gray","gray","gray"),add.plot=T) SymbLegend(X,Y,el,type="boxplot",qutiles<-c(0,0.05,0.25,0.75,0.95,1),symbtype="EDA", symbmagn=c(0.8,0.8,3,0.8,0.8), leg.position="topright",leg.title="As [mg/kg]",leg.title.cex=1.0,leg.round=2,leg.wid=4, leg.just="right",cex.scale=0.85,xf=9e3,logscale=TRUE,accentuate=FALSE) # scalebar scalebar(761309,7373050,861309,7363050,shifttext=-0.5,shiftkm=37e3,sizetext=0.8) # North arrow Northarrow(362602,7818750,362602,7878750,362602,7838750,Alength=0.15,Aangle=15,Alwd=1.3,Tcex=1.6) dev.off()

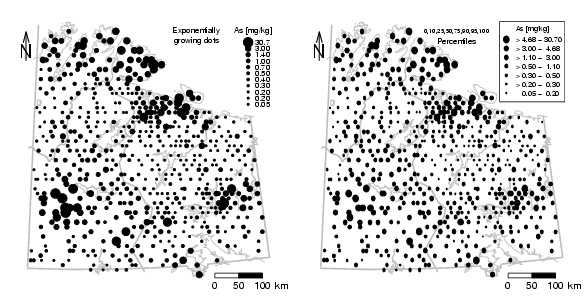

# Fig. 5.15.: Map with wrong growing dots library(StatDA) data(chorizon) data(kola.background) el=chorizon[,"As"] X=chorizon[,"XCOO"] Y=chorizon[,"YCOO"] # true representation of x and y axis of map for plot xwid=diff(range(X))/12e4 ywid=diff(range(Y))/12e4 pdf("fig-5-15.pdf",width=2*xwid,height=1*ywid) par(mfrow=c(1,2),mar=c(1.5,1.5,1.5,1.5)) ### NEW MAP: # generate plot with packground plot(X,Y,frame.plot=FALSE,xaxt="n",yaxt="n",xlab="",ylab="",type="n") plotbg(map.col=c("gray","gray","gray","gray"),add.plot=T) bubbleFIN(X,Y,el,S=9,s=2,plottitle="",legendtitle="As [mg/kg]", text.cex=0.63, legtitle.cex=0.70,ndigits=2) # Percentile legend text(min(X)+diff(range(X))*5/7,max(Y),"Exponentially",cex=0.70) text(min(X)+diff(range(X))*5/7,max(Y)-diff(range(Y))/25,"growing dots",cex=0.70) # scalebar scalebar(761309,7373050,861309,7363050,shifttext=-0.5,shiftkm=4e4,sizetext=0.8) # North arrow Northarrow(362602,7818750,362602,7878750,362602,7838750,Alength=0.15,Aangle=15,Alwd=1.3,Tcex=1.6) ### NEW MAP: # take symbols according to quantiles: qu=c(0,0.1,0.25,0.5,0.75,0.90,0.95,1) q=quantile(el, qu) # symbols and size symb=c(16,16,16,16,16,16,16) ssize=c(0.3,0.5,0.7,0.9,1.1,1.3,1.7)*0.63 # generate plot with packground plot(X,Y,frame.plot=FALSE,xaxt="n",yaxt="n",xlab="",ylab="",type="n") plotbg(map.col=c("gray","gray","gray","gray"),add.plot=T) # plot symbols: for (i in 1:(length(qu)-1)){ points(X[el>=q[i] & el=q[i] & el } points(X[el>=q[length(qu)]],Y[el>=q[length(qu)]],pch=symb[length(qu)],cex=ssize[length(qu)]) #Legend legn=round(q,2) leg=rep(NA,length(q)-1) leg[1]=paste(" ",format(legn[1],nsmall=2),"-",format(legn[1+1],nsmall=2,width=5,justify="right")) for (i in 2:(length(q)-1)){ leg[i]=paste(">",format(legn[i],nsmall=2),"-",format(legn[i+1],nsmall=2, width=5,justify="right")) } legend("topright",pch=rev(symb),pt.cex=rev(ssize), legend=rev(leg), title="As [mg/kg]", cex=0.62) # Percentile legend text(min(X)+diff(range(X))*4/7,max(Y),paste(qu*100,collapse=","),cex=0.54) text(min(X)+diff(range(X))*4/7,max(Y)-diff(range(Y))/25,"Percentiles",cex=0.63) # scalebar scalebar(761309,7373050,861309,7363050,shifttext=-0.5,shiftkm=4e4,sizetext=0.8) # North arrow Northarrow(362602,7818750,362602,7878750,362602,7838750,Alength=0.15,Aangle=15,Alwd=1.3,Tcex=1.6) dev.off()
