library(StatDA)
data(chorizon)
data(kola.background)
el=chorizon[,"As"]
X=chorizon[,"XCOO"]
Y=chorizon[,"YCOO"]
# true representation of x and y axis of map for plot
xwid=diff(range(X))/12e4
ywid=diff(range(Y))/12e4

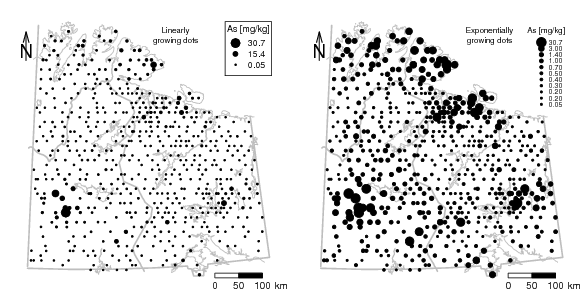

pdf("fig-5-2.pdf",width=2*xwid,height=1*ywid)
par(mfrow=c(1,2),mar=c(1.5,1.5,1.5,1.5))
### NEW MAP:
# take symbols continuously growing
q=c(min(el),min(el)+(max(el)-min(el))/2,max(el))
# symbols and size
symb=c(16,16,16)
ssize=c(0.3,0.9,1.7)
# generate plot with packground
plot(X,Y,frame.plot=FALSE,xaxt="n",yaxt="n",xlab="",ylab="",type="n")
plotbg(map.col=c("gray","gray","gray","gray"),add.plot=T)
# plot symbols:
el01=(el-min(el))/(max(el)-min(el))
el01ssize=el01*(ssize[3]-ssize[1])+ssize[1]
points(X, Y, pch=symb[3], cex=el01ssize)
#Legend
legn=round(q,2)
leg=rep(NA,length(q))
for (i in 1:length(q)){
leg[i]=roundpretty(legn[i],2)
}
legend("topright",pch=rev(symb),pt.cex=rev(ssize), legend=rev(leg), title="As [mg/kg]",
cex=0.75)
# continuously growing dot legend
text(min(X)+diff(range(X))*5/8,max(Y),"Linearly",cex=0.70)
text(min(X)+diff(range(X))*5/8,max(Y)-diff(range(Y))/25,"growing dots",cex=0.70)
# scalebar
scalebar(761309,7373050,861309,7363050,shifttext=-0.5,shiftkm=4e4,sizetext=0.8)
# North arrow
Northarrow(362602,7818750,362602,7878750,362602,7838750,Alength=0.15,Aangle=15,Alwd=1.3,Tcex=1.6)
### NEW MAP:
# generate plot with packground
plot(X,Y,frame.plot=FALSE,xaxt="n",yaxt="n",xlab="",ylab="",type="n")
plotbg(map.col=c("gray","gray","gray","gray"),add.plot=T)
bubbleFIN(X,Y,el,S=9,s=2,plottitle="",legendtitle="As [mg/kg]", text.cex=0.60,
legtitle.cex=0.70,ndigits=2)
# Percentile legend
text(min(X)+diff(range(X))*5/7,max(Y),"Exponentially",cex=0.70)
text(min(X)+diff(range(X))*5/7,max(Y)-diff(range(Y))/25,"growing dots",cex=0.70)
#scalebar
scalebar(761309,7373050,861309,7363050,shifttext=-0.5,shiftkm=4e4,sizetext=0.8)
# North arrow
Northarrow(362602,7818750,362602,7878750,362602,7838750,Alength=0.15,Aangle=15,Alwd=1.3,Tcex=1.6)
dev.off()
