3.5.2 The log-Boxplot

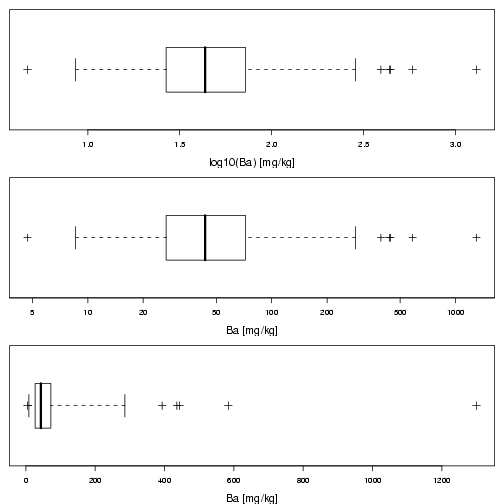

# Fig. 3.14.: Boxplots for Ba in C-horizon library(StatDA) data(chorizon) Ba=chorizon[,"Ba"] pdf("fig-3-14.pdf",paper="special",width=7,height=7) par(mar=c(4,1,1,1)) par(mfrow=c(3,1)) boxplot(log10(Ba),horizontal=T,xlab="log10(Ba) [mg/kg]",cex.lab=1.4,pch=3, cex=1.5) boxplot(log10(Ba),horizontal=T,xlab="Ba [mg/kg]",cex.lab=1.4,pch=3,xaxt="n") axis(1,at=log10(a<-sort(c((10^(-50:50))%*%t(c(2,5,10))))),labels=a,cex=1.5) boxplotlog((Ba),horizontal=T,xlab="Ba [mg/kg]",cex.lab=1.4,pch=3,cex=1.5) dev.off()
